Neon Flex

Product Category OutdoorOutdoor Product Category RGBRGB

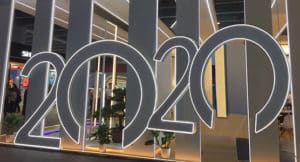

The look of neon in a LED highly flexible version. This non pixelated exterior rated product is suitable for many architectural applications, such as building outlines, signage, any type of structure. Available in a variety of colors and also color changing in a RGB version. Field cuttable with clear fittings to allow for continuous glow of light. Suitable for commercial, retail, hospitality and residential use.

Where to buy

Share this product:
Product Code NFLX-XX-YY
Electrical Input Voltage 24V DC
Power Consumption 2.44 W/Ft (8W/M)
Specs Colour Temperature 3000K, 4000K, 6000K, Red, Green, Blue, Amber, RGB
CRI 80+
Lumen Output 80Lm/ft (260Lm/m)
Efficacy 32.7 LPW
PVC Body Colour Clear
Operating Temperature *-20°C – 40°C
Dimmable Yes
Beam Angle 120°
LED Type N/A
Life Span 30,000 Hours
# per foot (304mm N/A
Design Dimensions (Inches) 1.04 x 0.6’’
Dimensions (Milimeters) 26.5 x 15mm
Max Single Run Length 40Ft
Custom Cuttable 4″ Single Colour, 12″ RGB
Approved Location Indoor/Outdoor
Warranty 3 years
Approvals cETLus
Accessory - NFLX-XX-YY Aluminum Mounting Channel

NFLX-CHANNEL

NFLX-XX-YY Aluminum Mounting Channel

Accessory - NFLX-XX-YY Single Color In-line Splice Connector

NFLX-XX-YY

NFLX-XX-YY Single Color In-line Splice Connector

Accessory - NFLX-XX-YY Single Color Jumper Connector

NFLX-JUMP

NFLX-XX-YY Single Color Jumper Connector

Accessory - NFLX-XX-YY Single Color L-splice-connector

NFLX-XX-YY

NFLX-XX-YY Single Color L-splice-connector

Silicon Glue for tape lights

NFLX-GLUE

Silicon Glue

Accessory - NFLX-XX-YY Single Color NFLX-PINS

NFLX-PINS

NFLX-XX-YY Single Color NFLX-PINS

Accessory - NFLX-XX-YY Mounting Clips

NFLX-CLIPS

NFLX-XX-YY Mounting Clips

Accessory - NFLX-XX-YY NFLX ENDS

NFLX-ENDS

NFLX-XX-YY NFLX ENDS

Accessory - NFLX-XX-YY Single Color Power Feed Connector

NFLX-CONKIT-6FT-cable

NFLX-XX-YY Single Color Power Feed Connector

Accessory - NFLX-XX-YY Single Color T-splice Connector

NFLX-XX-YY

NFLX-XX-YY Single Color T-splice Connector

Accessory - NFLX-XX-YY RGB Controller

NFLX-RGB-Controller

NFLX-XX-YY RGB Controller

Accessory - NFLX-XX-YY RGB 6 ft Power Feed Connector, Opposite

NFLX-RGB-CONKIT-6FT-cable-O

NFLX-XX-YY RGB 6 ft Power Feed Connector, Opposite

Accessory - NFLX-XX-YY RGB 6 ft Power Feed Connector

NFLX-RGB-CONKIT-6FT-cable

NFLX-XX-YY RGB 6 ft Power Feed Connector

Accessory - NFLX-XX-YY RGB Jumper Connector - 6 inch

NFLX-RGB-JUMP

NFLX-XX-YY RGB Jumper Connector - 6 inch

Accessory - NFLX-RGB PINS

NFLX-RGB-PINS

NFLX-RGB PINS

This product is suitable for the following applications:

  • Decorative Lighting
  • Aisle Lighting
  • Building Outlines
  • Landscape Lighting
  • Linear Decorative Lighting
  • Pathway Lighting
  • Stairway Lighting
  • Building Facades
  • Under Cabinet Lighting
  • Deck & Patio Lighting
  • Effect Lighting
  • Cove Lighting
  • Back Lighting
